Olympus Fiberscopes IF6PD4

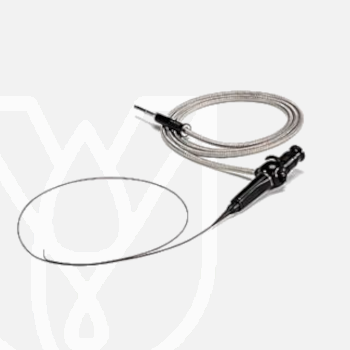

Small diameter fiberscopes can inspect narrow areas or where access is limited and are available in 0.64 mm. IF6PD4 has an ocular focus to ensure that the individual operator’s eyesight is accommodated and can be attached to CCTV for image recording.
For more information about this product click here.
Small diameter fiberscopes can inspect narrow areas or where access is limited and are available in 0.64 mm, 2.4 mm. Each model has an ocular focus to ensure that the individual operator’s eyesight is accomodated and can be attached to CCTV for image recording.
Ultra-Thin Diameters
The thinnest diameter flexible fiberscope (down to φ0.64mm). You can inspect inside narrow-diameter hole with 1mm or more diameter.
In some applications, the entry port size to the area of interest can be restricted and inserting a scope can be extremely difficult. This will often necessitate using an instrument of smaller diameter than conventional models.
These instruments have ocular focus to ensure that the individual operator’s eyesight is accommodated and can be attached to CCTV to allow the images to be permanently recorded. To illuminate the inspection area, any one of the Olympus light sources can be used.
Variety of Lineup
Extensive scope lineup of 0.64mm, 2.4mm (0.02, 0.09″) diameter at lengths of up to 1.2m (3.9′).
High resolution
Original Olympus high-performance optics technology, such as high-density glass fiber bundles, offers the world’s highest level of fiberscopic resolution and bright, sharp images.
Fully waterproof insertion section
Fully waterproof insertion section for underwater use. (Most models) Drip-proof control section.
Video documentation
Video recording is available by connecting a CCD camera.
| Features and Functions | |||
| Outer diameter | φ0.64 mm | ||
| Effective length | 490 mm | IF6PD4-6 | |
| 600 mm | |||
| 990 mm | IF6PD4-11 | ||
| 1,170 mm | |||
| Distal end length | – | ||
| Field of view | 58° | ||
| Direction of view | Direct Viewing | ||
| Depth of field (Fixed focus) | 1 to 50 mm | ||
| Illumination system | Light guide system | ||
| Bending section | Angulation range | – | |
| Light guide cable length | 2,000 mm | ||
| Operating environment | |||
| Operating temperatures | Insertion tube | In air | 10 to 40℃ (50 to 104°F) |
| In Water | 10 to 30℃ (50 to 86°F) | ||
| Other parts than above | In air | 10 to 40℃ (50 to 104°F) | |
| Operating atmospheric pressure | Insertion tube | In air / water | 1013hPa |
| Other parts than above | In air | 1013hPa | |
| Liquid resistance (against machine oil, light oil and 5% saline) | |||
| Waterproof | Insertion tube | ||
| Drip-proof | Control section | ||
